FOO BAR
Flow to compute with finite differences.
Finite electric field calculation of AlP at clamped atomic positions
Here the polarization of the cell is computed as a function of increasing external homogeneous electric field.
berryopt 4 is used to trigger the finite field calculation, while the efield variable sets the strength (in atomic units) and direction of the field
Based on tutorespfn/Input/tpolarization_6.abi
Downloading repository from: https://github.com/PseudoDojo/ONCVPSP-PBE-PDv0.4/archive/refs/heads/master.zip ...
Installing ONCVPSP-PBE-SR-PDv0.4 in: /home/runner/.abinit/pseudos/ONCVPSP-PBE-SR-PDv0.4
0.00iB [00:00, ?iB/s]
794kiB [00:00, 7.16MiB/s]
1.52MiB [00:00, 3.80MiB/s]
2.85MiB [00:00, 6.57MiB/s]
3.71MiB [00:00, 5.48MiB/s]
5.14MiB [00:00, 7.61MiB/s]
6.14MiB [00:00, 7.25MiB/s]
7.00MiB [00:01, 6.91MiB/s]
7.78MiB [00:01, 6.90MiB/s]
8.54MiB [00:01, 6.91MiB/s]
9.28MiB [00:01, 5.75MiB/s]
10.0MiB [00:01, 5.80MiB/s]
11.2MiB [00:01, 7.21MiB/s]
12.0MiB [00:01, 6.54MiB/s]
12.8MiB [00:02, 5.87MiB/s]
13.7MiB [00:02, 6.06MiB/s]
14.5MiB [00:02, 5.96MiB/s]
15.8MiB [00:02, 7.29MiB/s]
16.6MiB [00:02, 7.54MiB/s]
17.5MiB [00:02, 7.06MiB/s]
18.2MiB [00:02, 6.67MiB/s]
19.0MiB [00:02, 6.95MiB/s]
19.8MiB [00:03, 6.92MiB/s]
20.5MiB [00:03, 6.89MiB/s]
21.3MiB [00:03, 6.63MiB/s]
22.1MiB [00:03, 6.91MiB/s]
22.8MiB [00:03, 6.36MiB/s]
23.7MiB [00:03, 6.89MiB/s]
24.5MiB [00:03, 6.39MiB/s]
25.4MiB [00:03, 7.14MiB/s]
26.2MiB [00:03, 6.28MiB/s]
27.2MiB [00:04, 6.72MiB/s]
27.9MiB [00:04, 6.64MiB/s]
28.6MiB [00:04, 6.57MiB/s]
29.3MiB [00:04, 6.51MiB/s]
30.0MiB [00:04, 5.77MiB/s]
30.7MiB [00:04, 5.70MiB/s]
31.5MiB [00:04, 6.10MiB/s]
32.3MiB [00:04, 6.19MiB/s]
33.0MiB [00:05, 6.09MiB/s]
34.1MiB [00:05, 7.07MiB/s]
34.9MiB [00:05, 7.07MiB/s]
35.6MiB [00:05, 6.67MiB/s]
36.5MiB [00:05, 6.98MiB/s]
37.2MiB [00:05, 6.90MiB/s]
38.1MiB [00:05, 7.00MiB/s]
38.8MiB [00:05, 7.25MiB/s]
39.6MiB [00:06, 7.00MiB/s]
40.3MiB [00:06, 6.84MiB/s]
41.1MiB [00:06, 6.21MiB/s]
41.7MiB [00:06, 5.11MiB/s]
43.0MiB [00:06, 5.56MiB/s]
44.2MiB [00:06, 6.31MiB/s]
45.0MiB [00:06, 6.34MiB/s]
46.3MiB [00:07, 7.76MiB/s]
47.2MiB [00:07, 7.28MiB/s]
48.0MiB [00:07, 7.11MiB/s]
48.7MiB [00:07, 6.91MiB/s]
49.5MiB [00:07, 6.78MiB/s]
50.3MiB [00:07, 6.64MiB/s]
51.0MiB [00:07, 5.70MiB/s]
51.7MiB [00:07, 5.25MiB/s]
52.8MiB [00:08, 6.27MiB/s]
53.9MiB [00:08, 7.49MiB/s]
54.8MiB [00:08, 7.54MiB/s]
55.6MiB [00:08, 7.25MiB/s]
56.4MiB [00:08, 7.24MiB/s]
57.2MiB [00:08, 7.06MiB/s]
57.9MiB [00:08, 6.63MiB/s]
58.7MiB [00:08, 6.76MiB/s]
59.4MiB [00:09, 5.80MiB/s]
60.6MiB [00:09, 6.74MiB/s]
61.3MiB [00:09, 5.90MiB/s]
62.1MiB [00:09, 5.49MiB/s]
63.1MiB [00:09, 5.85MiB/s]
64.1MiB [00:09, 6.68MiB/s]
64.9MiB [00:09, 6.58MiB/s]
65.7MiB [00:10, 6.98MiB/s]
66.4MiB [00:10, 6.09MiB/s]
67.4MiB [00:10, 6.23MiB/s]
68.3MiB [00:10, 6.17MiB/s]
69.4MiB [00:10, 5.07MiB/s]
71.1MiB [00:10, 7.21MiB/s]
72.2MiB [00:10, 7.52MiB/s]
73.1MiB [00:11, 6.24MiB/s]
74.1MiB [00:11, 6.26MiB/s]
75.2MiB [00:11, 6.38MiB/s]
76.5MiB [00:11, 7.79MiB/s]
77.5MiB [00:11, 7.73MiB/s]
78.3MiB [00:11, 7.51MiB/s]
79.1MiB [00:12, 7.09MiB/s]
79.9MiB [00:12, 4.68MiB/s]
81.4MiB [00:12, 6.00MiB/s]
82.5MiB [00:12, 4.77MiB/s]
84.6MiB [00:12, 6.99MiB/s]
85.6MiB [00:13, 6.35MiB/s]
86.7MiB [00:13, 6.11MiB/s]
88.5MiB [00:13, 7.86MiB/s]
89.4MiB [00:13, 7.77MiB/s]
90.3MiB [00:13, 7.40MiB/s]
91.1MiB [00:13, 6.45MiB/s]
92.2MiB [00:14, 7.09MiB/s]
93.0MiB [00:14, 7.02MiB/s]
93.8MiB [00:14, 7.01MiB/s]
94.6MiB [00:14, 6.30MiB/s]
95.5MiB [00:14, 6.97MiB/s]
95.5MiB [00:14, 6.56MiB/s]
Validating md5 checksums of ONCVPSP-PBE-SR-PDv0.4...
Checksum test: OK
Installation completed successfully in 16.10 [s]
import sys
import os
import abipy.flowtk as flowtk
from abipy.core.structure import Structure
from abipy.abio.inputs import AbinitInput
from abipy.flowtk.works import PhononWork
from abipy.flowtk.dfpt_works import ElasticWork
from abipy.flowtk.finitediff import FiniteEfieldWork, FiniteDisplWork, FiniteStrainWork, FiniteHfieldWork
def build_flow(options):
# Set working directory (default is the name of the script with '.py' removed and "run_" replaced by "flow_")
if not options.workdir:
options.workdir = os.path.basename(sys.argv[0]).replace(".py", "").replace("run_", "flow_")
structure = Structure.from_abistring("""
# Definition of the unit cell
acell 3*7.2728565836E+00
rprim
0.0000000000E+00 7.0710678119E-01 7.0710678119E-01
7.0710678119E-01 0.0000000000E+00 7.0710678119E-01
7.0710678119E-01 7.0710678119E-01 0.0000000000E+00
natom 2 # two atoms in the cell
typat 1 2 # type 1 is Phosphorous, type 2 is Aluminum (order defined by znucl above and pseudos list)
# Definition of the atom types and pseudopotentials
ntypat 2 # two types of atoms
znucl 15 13 # the atom types are Phosphorous and Aluminum
#atomic positions, given in units of the cell vectors. Thus as the cell vectors
#change due to strain the atoms will move as well.
xred
1/4 1/4 1/4
0 0 0
""")
# Get NC pseudos from pseudodojo.
from abipy.flowtk.psrepos import get_oncvpsp_pseudos
pseudos = get_oncvpsp_pseudos(xc_name="PBE", version="0.4",
relativity_type="SR", accuracy="standard")
#nband 4
# nband is restricted here to the number of filled bands only, no empty bands. The theory of
# the Berrys phase polarization formula assumes filled bands only. Our pseudopotential choice
# includes 5 valence electrons on P, 3 on Al, for 8 total in the primitive unit cell, hence
# 4 filled bands.
scf_input = AbinitInput(structure, pseudos)
num_ele = scf_input.num_valence_electrons
scf_input.set_vars(
ecut=5,
nband=4,
tolvrs=1.0e-8,
nstep=100, # Maximal number of SCF cycles
ecutsm=0.5,
dilatmx=1.05,
paral_kgb=0,
)
shiftk = [0.5, 0.5, 0.5,
0.5, 0.0, 0.0,
0.0, 0.5, 0.0,
0.0, 0.0, 0.5,
]
scf_input.set_kmesh(ngkpt=[6, 6, 6], shiftk=shiftk)
#scf_input.set_kmesh(ngkpt=[1, 1, 1], shiftk=[0, 0, 0])
# Initialize the flow.
flow = flowtk.Flow(workdir=options.workdir, manager=options.manager)
fd_accuracy = 2 # 3 points
#fd_accuracy = 4 # 5 points
relax_ions = True
relax_ions_opts = None
flow.register_work(FiniteEfieldWork.from_scf_input(
scf_input,
fd_accuracy=fd_accuracy,
step_au=0.0001,
relax_ions=relax_ions,
relax_ions_opts=relax_ions_opts,
))
#flow.register_work(FiniteDisplWork.from_scf_input(
# scf_input,
# fd_accuracy=fd_accuracy,
# step_au=0.01,
# extra_abivars=dict(berryopt=-1), # This to compute the polarization at E = 0
#))
flow.register_work(FiniteStrainWork.from_scf_input(
scf_input,
fd_accuracy=fd_accuracy,
norm_step=0.005,
shear_step=0.03,
extra_abivars=dict(berryopt=-1), # This to compute the polarization at E = 0
relax_ions=relax_ions,
relax_ions_opts=relax_ions_opts,
))
#flow.register_work(FiniteHfieldWork.from_scf_input(
# scf_input,
# fd_accuracy=fd_accuracy,
# step_au=0.01,
# relax_ions=relax_ions,
# relax_ions_opts=relax_ions_opts,
#))
#flow.register_work(PhononWork.from_scf_input(scf_input,
# qpoints=[0, 0, 0],
# is_ngqpt=False,
# with_becs=True,
# with_quad=False,
# with_flexoe=False,
# with_dvdb=False,
# tolerance=None,
# ddk_tolerance=None
#))
flow.register_work(ElasticWork.from_scf_input(scf_input,
with_relaxed_ion=True,
with_piezo=True,
with_dde=False,
tolerances=None
))
return flow
# This block generates the thumbnails in the AbiPy gallery.
# You can safely REMOVE this part if you are using this script for production runs.
if os.getenv("READTHEDOCS", False):
__name__ = None
import tempfile
options = flowtk.build_flow_main_parser().parse_args(["-w", tempfile.mkdtemp()])

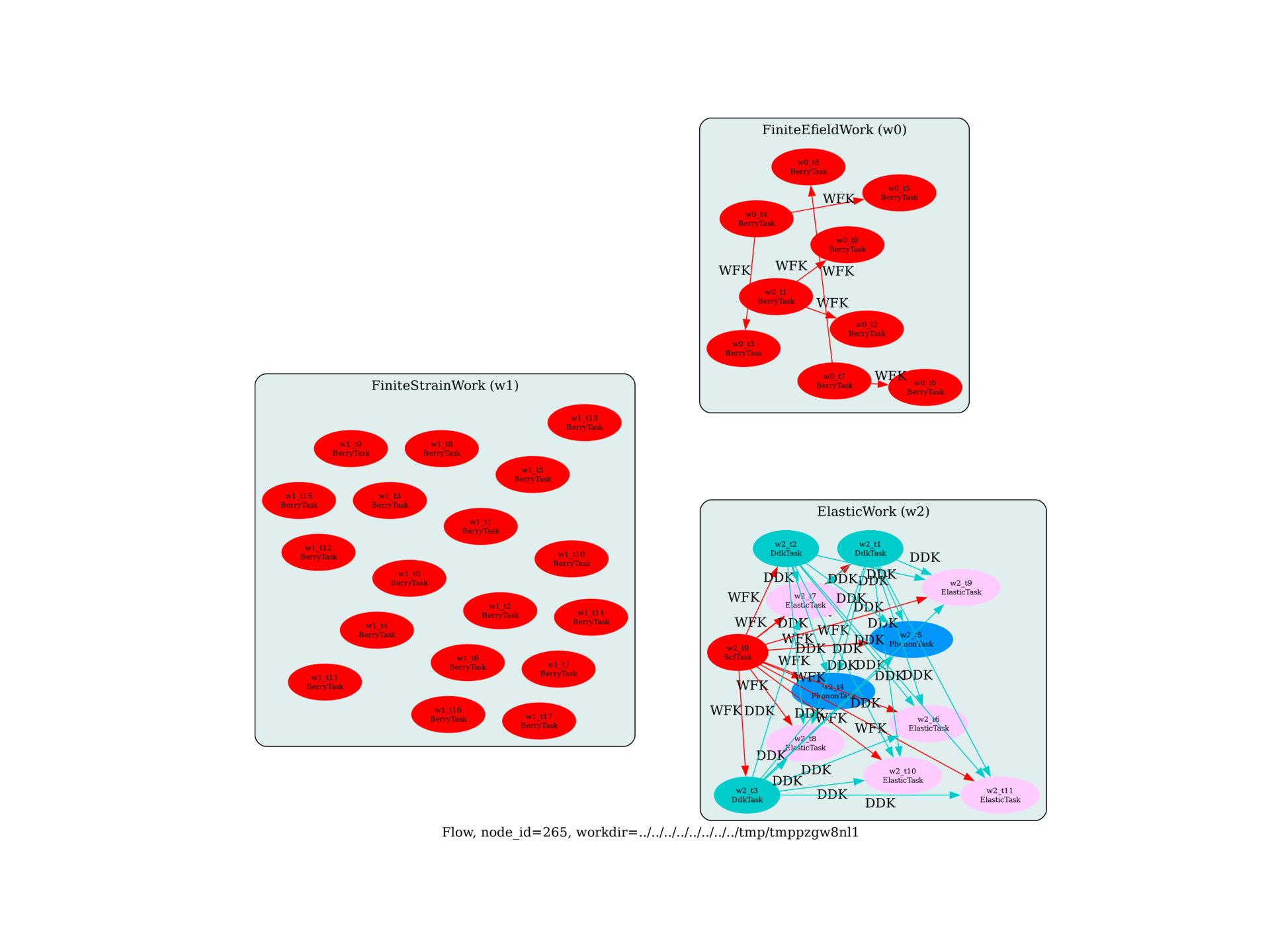

build_flow(options).graphviz_imshow()
@flowtk.flow_main
def main(options):
"""
This is our main function that will be invoked by the script.
flow_main is a decorator implementing the command line interface.
Command line args are stored in `options`.
"""
return build_flow(options)
if __name__ == "__main__":
sys.exit(main())
Total running time of the script: (0 minutes 18.288 seconds)
