Lumabi: Luminescence Lineshape of Point Defects#

../../_images/Lumabi_logo.png

These chapters introduces Lumabi, a collection of Python modules integrated in the AbiPy framework designed to compute the luminescence lineshape of point defects in solids using Abinit.

Overview#

Lumabi is structured around four main Python modules, each automating a key stage of the computational workflow for phonon-resolved luminescence spectra of defects. These modules are designed to be used together, the output of one module serving as input for another, or separately.

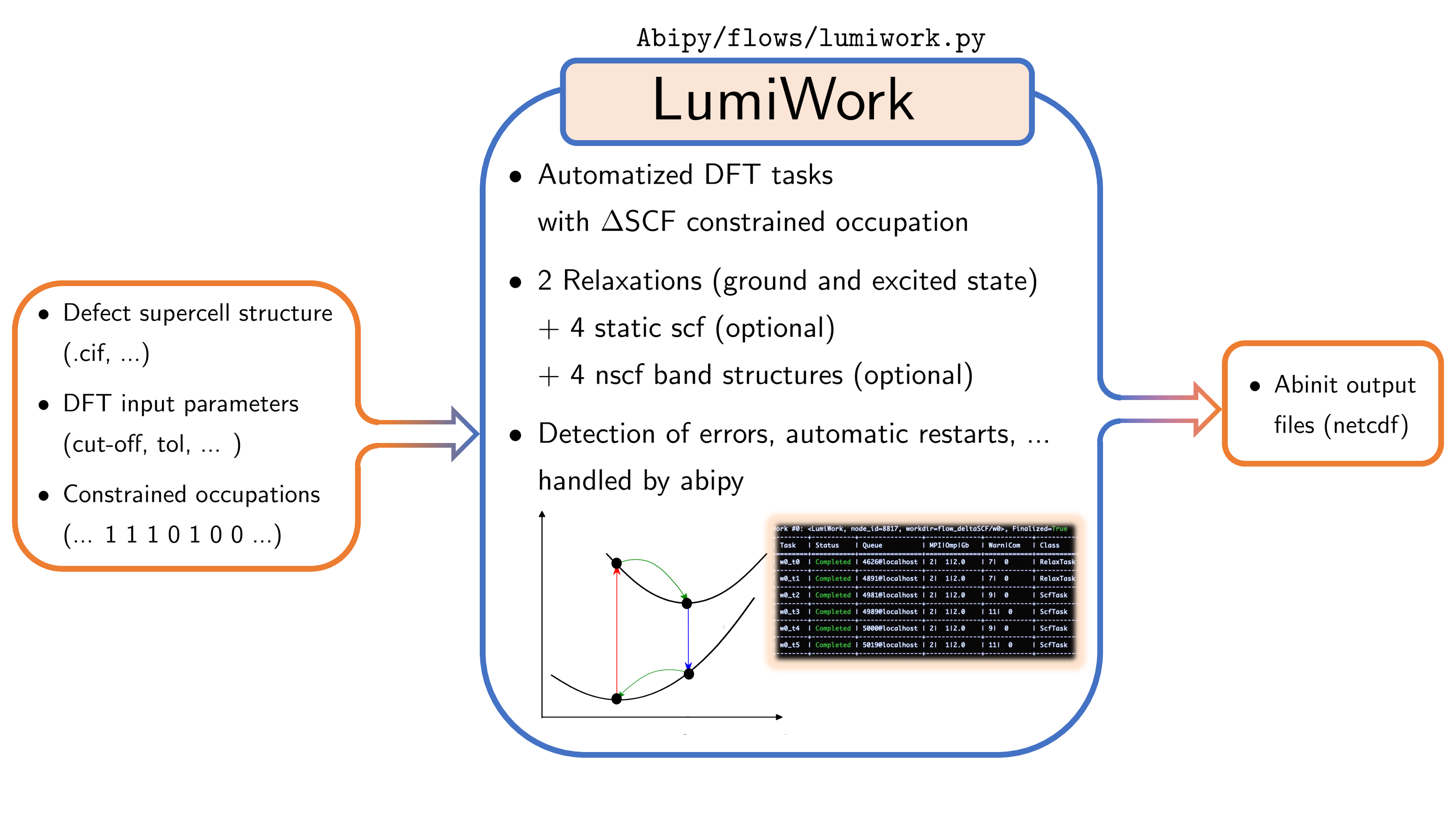

1. LumiWork Module#

The LumiWork module, an AbiPy Workflow that automates ABINIT DFT tasks with SCF constrained occupations.

The LumiWork module automates ABINIT DFT tasks with \(\Delta\)SCF constrained occupations. It manages two structural relaxations (ground-state and excite-state), and optional static SCF and NSCF band structure calculations. The main results are stored in netcdf files, ready for post-processing.

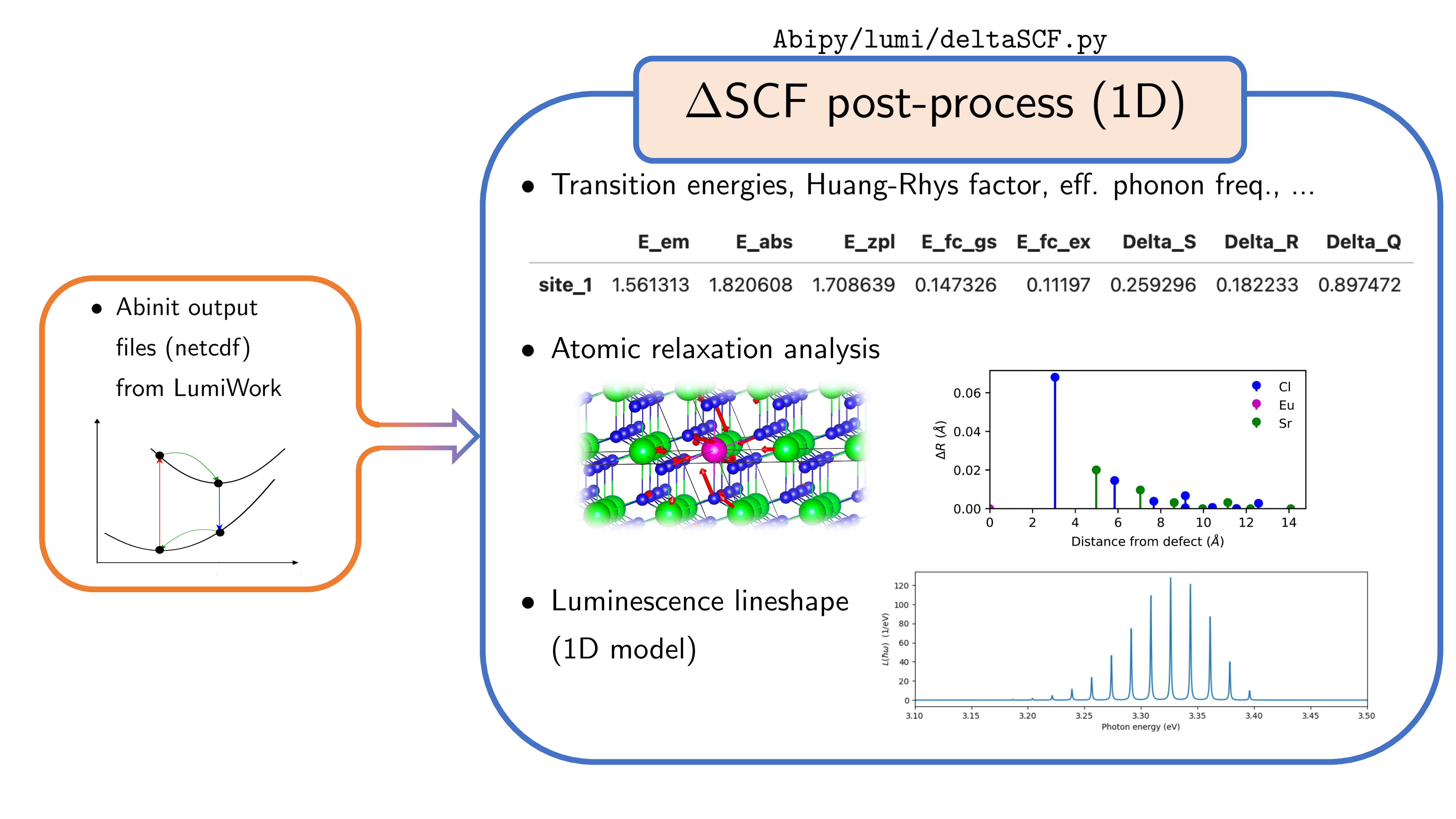

2. \(\Delta\)SCF Post-Processing Module#

The SCF module, designed to post-process SCF constrained-occupation calculations using a one-dimensional configuration-coordinate model.

This module processes the netcdf output files produced by LumiWork, and analyze them with a one-dimensional configuration coordinate model (1D-CCM). It computes transition energies, Huang-Rhys factors, effective phonon frequencies, lineshapes within the 1D-CCM, and helps analyze atomic relaxations.

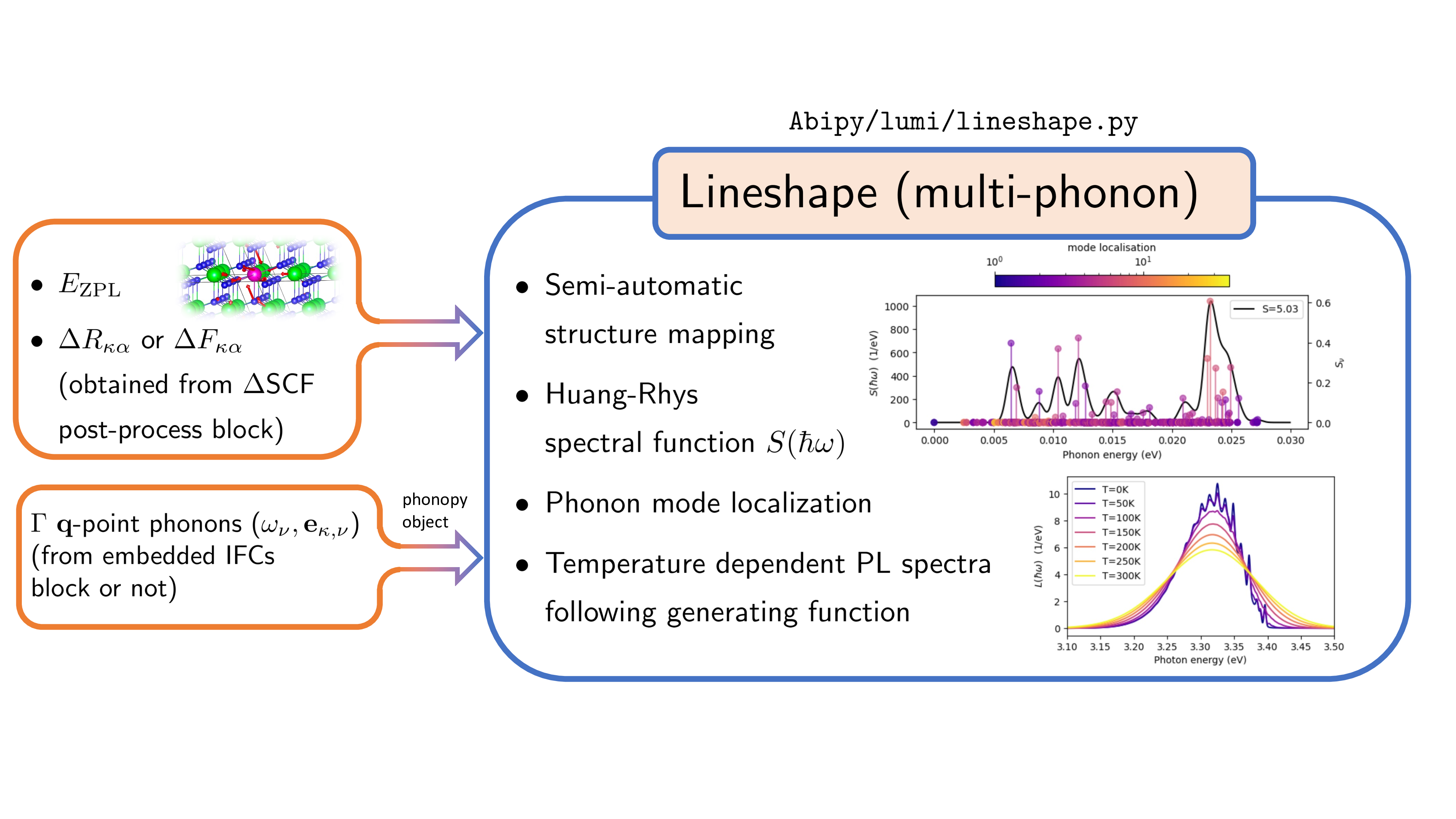

3. Lineshape Calculation Module#

The lineshape module, allowing to compute the temperature-dependent spectra.

Here, we adopt a multi-phonon approach, or multi-dimensional configuration coordinate model (multi-D CCM). The Lineshape module computes the Huang-Rhys spectral function and generates (temperature-dependent) photoluminescence spectra using the generating function approach. It takes in input the zero-phonon line energy, atomic displacements or forces, and phonon modes (potentially from the IFCs embedding module), and produces the final phonon-resolved luminescence spectrum.

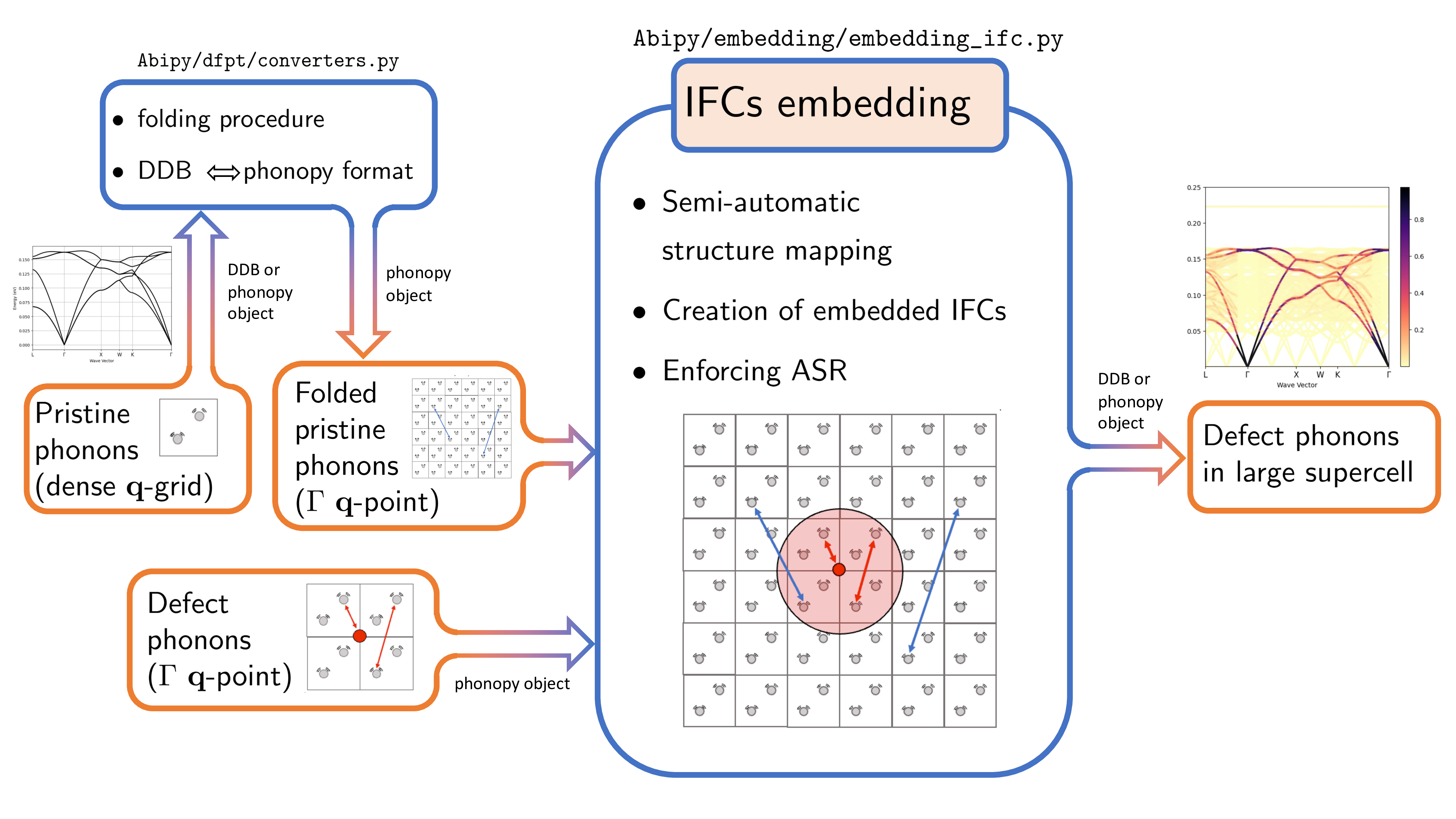

4. IFCs Embedding Module#

The IFCs embedding module, allowing to calculate defect phonons in large supercells.

The IFCs Embedding module enables the calculation of defect phonons in large supercells by combining interatomic force constants (IFCs) from both pristine and defect systems. This approach is useful to capture both the coupling with long-wavelength and localized phonon modes.

Tutorial structure#

This tutorial is organized as follows:

  1. Theory: Presents the formalism for luminescence lineshape calculations, from Fermi’s golden rule to practical models for solids, and introduces the Huang-Rhys theory and generating function approach. It then discusses some aspects of the computational methodology, including the \(\Delta\)SCF, the use of the forces instead of displacements, and the IFCs embedding approach.

  2. LumiWork Workflow: Guides through setting up and running the automated workflow for \(\Delta\)SCF calculations using the lumiwork module.

  3. \(\Delta\)SCF Post-Processing (1D): Shows how to analyze results of a LumiWork workflow using the 1D-CCM (single effective phonon mode model) with the deltaSCF module.

  4. Lineshape (multi-phonon): Explains how to compute with the lineshape module the phonon-resolved luminescence spectrum using the generating function approach.

  5. IFC Embedding: Details the embedding approach of the embedding_ifc module for obtaining phonon modes in large supercells with defects.
